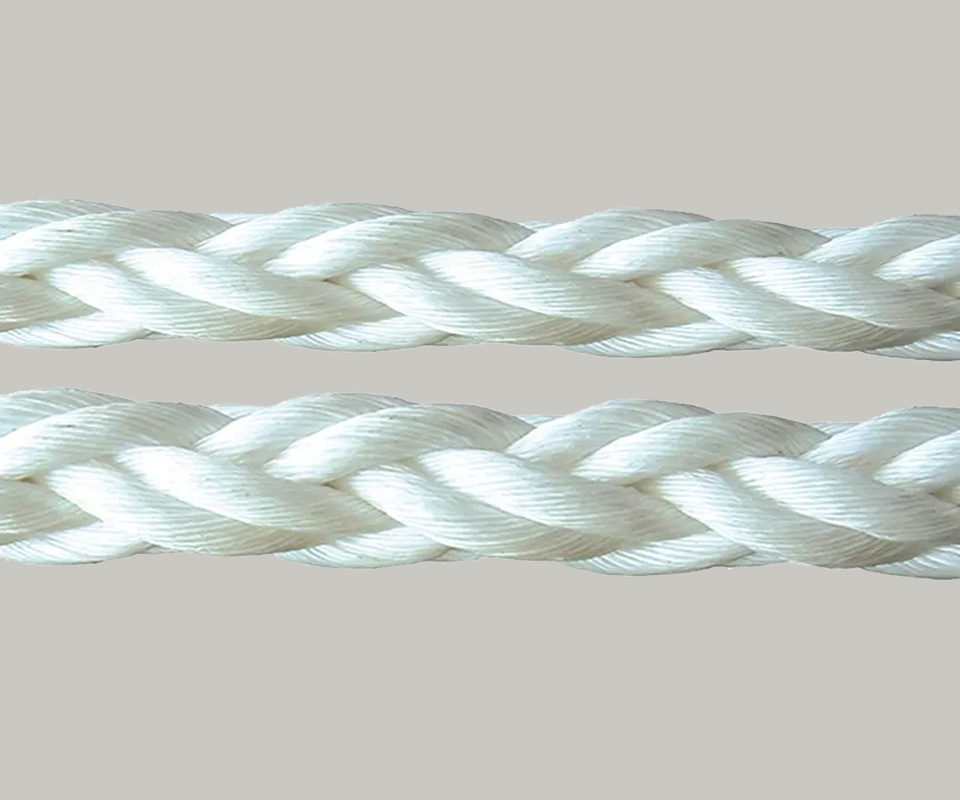

MixElite Lite Rope (8-Strand PP-PES Mix Braided)

MixElite Lite Rope (8-Strand PP-PES Mix Braided)
MixElite Lite Rope (8-Strand PP-PES Mix Braided)

Features and Benefits :

  • Floating Rope
  • Excellent shape and original weight retention
  • Excellent shock absorption capacity, Low snap-back
  •  Higher-strength and long life compared to Other ropes3
  • Loss of breaking strength in wet conditions
  • UV stabilized with medium to low elongation in use
  • Chemically inert & Better abrasion resistance
  • Less tug joining time

Product Description

         8 Strand High Tenacity Polyolefin and High Tenacity Polyester Mixed Ropes are primarily used in Marine industries, Mooring applications and Heavy lifting equipment. These ropes are produced on the latest & modern machinery using the latest technologies, hence possess excellent standards & properties.


>> Usage / Application:                   >> Technical Specification :
    • Marine industries                   • Single Point Mooring                      Material     :   Polyester & Polyolefin Mixed
    • New Shipbuilding                   • Oil Tanker operations                      Rope Construction :   8-Strand Braided
    • Rigging and sail boats           • Windlass anchor lines                      Lay Structure :   Hawser Lay
                       Specific Gravity :   0.99 g/cm3
                       Melting Point :   165 / 265 °C

>> CHARACTERISTICS:                   >> Range of Rope :
    •  Excellent shape and original weight retention                      Diameters     :  24 MM to 96 MM
    •  Excellent shock absorption capacity, Low snap-back                      Length     : 110, 220, 330, 440 Meter and up to 1200 Kg Per Coil
    •  Higher-strength and long life compared to Other ropes3                      Color     : White
    •  Loss of breaking strength in wet conditions
    •  UV stabilized with medium to low elongation in use
    •  Flexible, easy to handle and splice in use
    •  Chemically inert
    •  Less tug joining time
    •  Better abrasion resistance



>>   Technical Specification of MixElite Lite Rope  <<

SIZE
(Dia)

CIRC. IN
(Inch)

WEIGHT
(220 Mtr)

BREAKING STRENGTH
(Unspliced MBL)

BREAKING STRENGTH
(Eye spliced-LDBF)
28 MM 3-1/2 85.00 kg 187.40 Lbs 13600 kgf 29983 Lbs 12240 kgf 26984 Lbs
32 MM 4 112.00 kg 246.90 Lbs 17800 kgf 39242 Lbs 16020 kgf 35318 Lbs
36 MM 4-1/2 142.00kg 313.10 Lbs 23800 kgf 52469 Lbs 21420 kgf 47223 Lbs
40 MM 5 175.00 kg 385.80 Lbs 28900 kgf 63713 Lbs 26010 kgf 57342 Lbs
44 MM 5-1/2 211.00 kg 465.20 Lbs 37100 kgf 81791 Lbs 33390 kgf 73612 Lbs
48 MM 6 251.00 kg 553.40 Lbs 44100 kgf 97223 Lbs 39690 kgf 87501 Lbs
52 MM 6-1/2 295.00 kg 650.40 Lbs 51200 kgf 112876 Lbs 46080 kgf 101588 Lbs
56 MM 7 343.00 kg 756.20 Lbs 58900 kgf 129851 Lbs 53010 kgf 116866 Lbs
60 MM 7-1/2 394.00 kg 868.60 Lbs 67000 kgf 147708 Lbs 60300 kgf 132937 Lbs
64 MM 8 449.00 kg 989.90 Lbs 75400 kgf 166227 Lbs 67860 kgf 149604 Lbs
68 MM 8-1/2 506.00 kg 1115.50 Lbs 84000 kgf 185186 Lbs 75600 kgf 166668 Lbs
72 MM 9 567.00 kg 1250.00 Lbs 91000 kgf 200619 Lbs 81900 kgf 180557 Lbs
80 MM 10 701.00 kg 1545.04 Lbs 116000 kgf 255734 Lbs 104400 kgf 230160 Lbs
88 MM 11 849.00 kg 1871.70 Lbs 140000 kgf 308644 Lbs 126000 kgf 277780 Lbs
96 MM 12 1011.00 kg 2228.90 Lbs 166000 kgf 365964 Lbs 149400 kgf 329367 Lbs
>> Test Method as per ISO 2307:2019
 >> Allowed Tolerance: 24mm to 96mm= +/-5%
>> Mill Certificate / DNV Certificate as Per OCIMF Guidelines Can Be Offered
